Working principle:

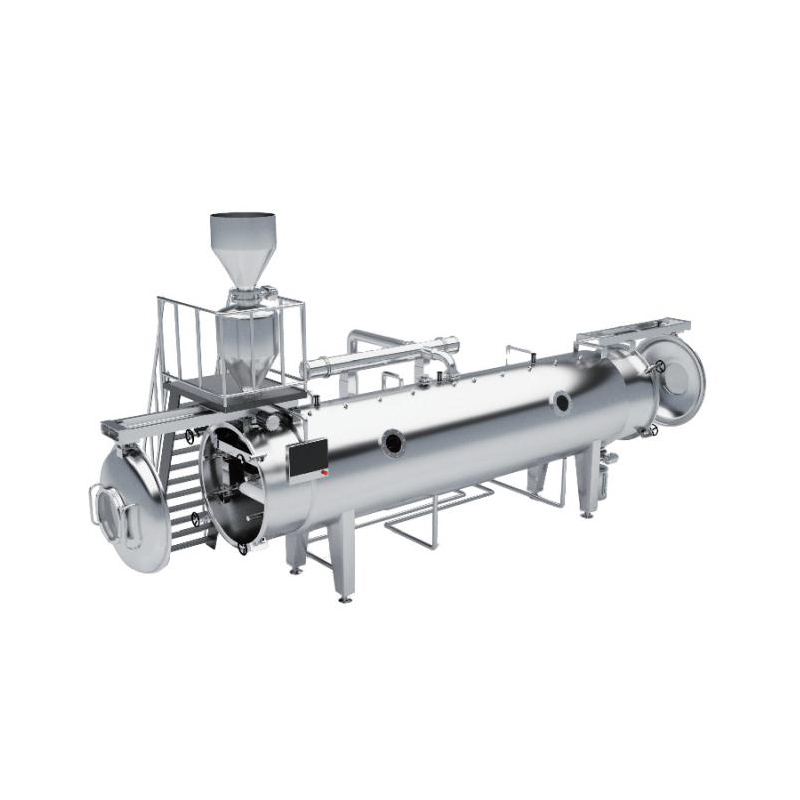

Vacuum continuous belt solid drier allows continuous feeding and discharging of wet solid materials for drying under vacuum and low temperature environment. Solid material is fed into the drier through a highly adaptive feeder and spread evenly onto a low speed conveyor belt, Conveyor belts can be 3-13 layers as required and have the ends staggered to make the materials on the upper conveyor belt fall on the lower conveyor belt by gravity. Layer-by-layer transmission on the belt with heating plate in it provides complete evaporation of wet gradient in the materials. The heat medium in that heating plate can be steam or hot water configurable in the temperature between 30 and 180C. The heating plate is controlled separately in temperature by layer. The material can be cooled inside or outside the machine base on the property of material. Crusher can be provided for crushing if necessary. Drying time is adjustable in 30-150mins.

Scope of application:

Wet solids, crystals, granules, powders and pills in the Chinese and western medicines, foods and chemical

raw materials;

Explosive, toxic, wet and pungent odor material;

Wet components to be recovered.

Equipment composition:

Main drying machine, feeding system, vacuum system, heating system, cooling system, discharging system,CIP (SIP optional) and control system.

Product advantages:

‌• High vacuum and low temperature drying, continuous feeding and discharging, dynamic drying, and adjustable drying time (30 min-150 min);

‌• Drying temperature adjustable (30'C-180°C) to accommodate various process materials;

‌• Separate and adjustable layer temperature control;

‌• Dry materials can be cooled internally or externally;

‌• Low operation cost, noise and pollution;

‌• The spray nozzles inside the drier are arranged by 3D simulation technology, which will spray key parts like the top and bottom surface of the belt, roller shaft, roller and front and back head to realize thorough spraying without dead legs;

‌• Full automation;

‌• Low labor cost, max.two operators required;

‌• The heating plate is laser welded. The heat effect area of the base metal is small. The plate is in shape and keep tightly attached with the belt, it has high heat transfer efficiency and does not need maintenance for lifetime.

‌• Magnetic fluid rotary seal has good sealing effect and long service life of sealing parts.

‌• It adopts half-axis parallel sliding anti-deviation technology, which can realize parallel sliding anti-deviation with slight deformation of the belt. The sensing distance and performing distance of anti-deviation is short.The anti-deviation action is reliable.

‌• Quantitative feeding, automatic discharging, fully closed, high product yield (theoretical yield greater than 99%);

‌• Self-developed heat exchange system and professional mold temperature machine can accurately control the drying temperature between 30°C and 180°C;

‌• Closed and clean vacuum low temperature drying environment;

‌• User-friendly man-machine interface, automatic and continuous production, easy operation and saving labor cost.
